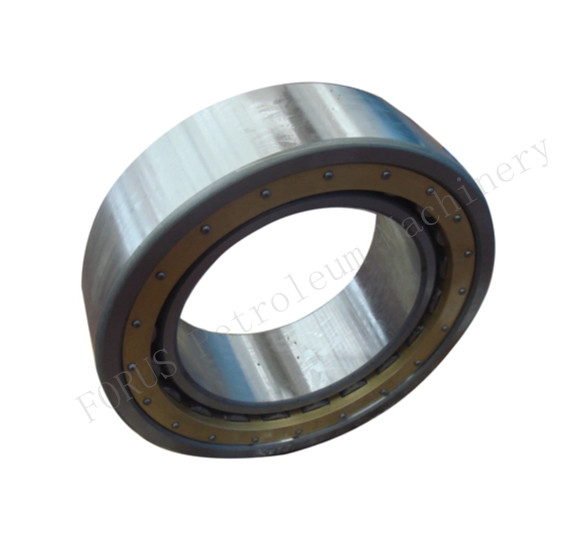

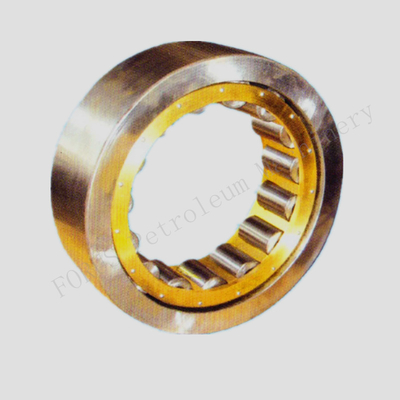

Bantalan Suku Cadang Pompa Lumpur Untuk Pompa Lumpur F-800 API 7K Standar
Parameter Teknis Pompa Lumpur F800
| Jenis |
Pompa Piston Aksi Tunggal Triplex Horisontal |
Jenis gigi: |
tulang ikan haring |
| Nilai Daya, HP (kw) |
800(597) |
Perbandingan gigi |
4.185: 1 |
| Kecepatan Pompa Terukur, SPM |
150 |
Ukuran Liner Maksimum dengan Panjang Stroke, inci (mm) |
6-3/4"×9"(170×229) |
| Koneksi Hisap, inci |
10 |
Panci Katup |
API#6 |
| Flensa debit, inci |
5 |
poros pinion dia.In (mm) |
7" (177.8mm) |
| Perkiraan Berat, Ibs (kg) |
31970 (14500) |
| Masukkan (mm) |
1-3/4×1-3/4(44.45×44.45) |
| Tenaga motor |
55Kw
|
Pasokan Suku Cadang Pompa Lumpur Merek Dan Model
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA: HHF-500, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800
ITECO:T-500,T-800,T-1000,T-1600
SUMUR Minyak: A-350-PT, A-650-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
CUACA:MP-5, MP-8, MP-10, MP-13, MP-16
NASIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250, C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
