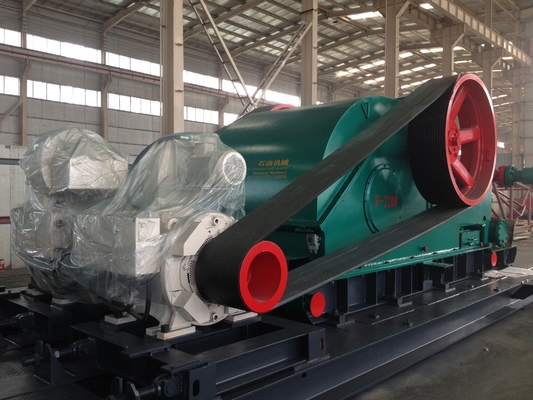

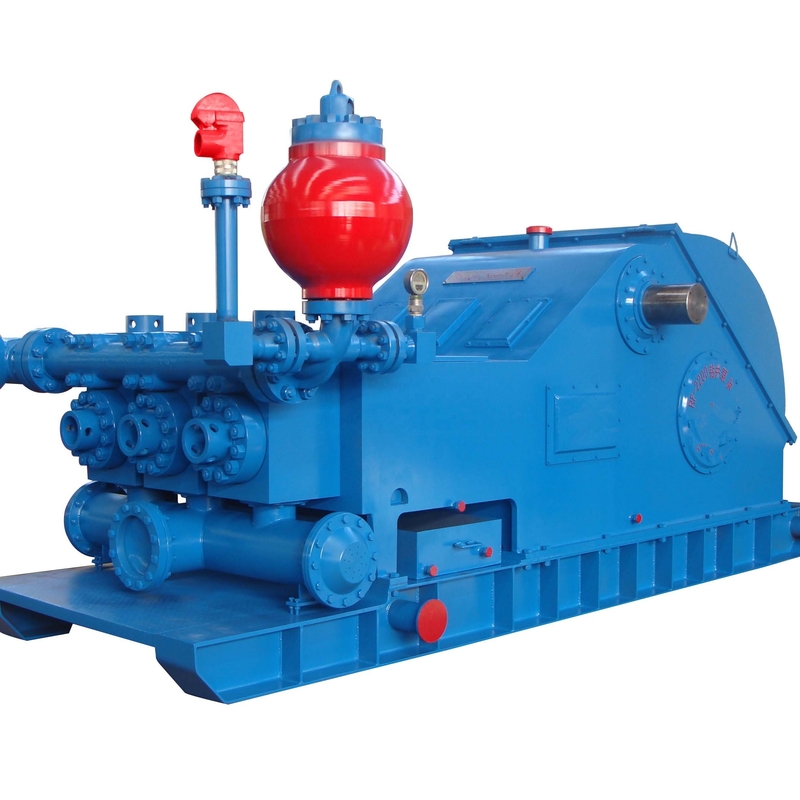

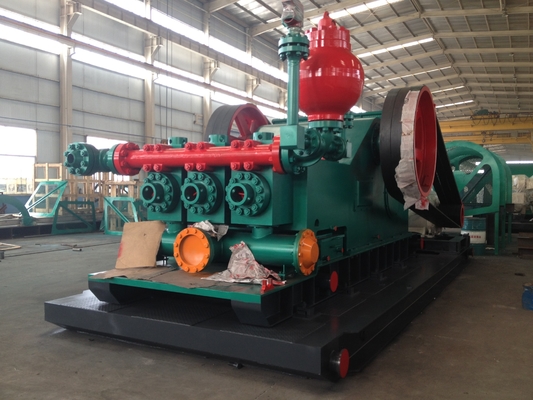

Pompa Lumpur Pengeboran Untuk RS F-2200 Kekuatan kuda 2200 API 7K
Parameter spesifik
| Model Pompa |
RS-F2200 |
| Daya masuk nominal |
1640kw ((2200HP) |
| Stroke |
105 min-1 ((105SPM) |
| Panjang Stroke |
356mm (((14") |
| Rasio gir |
3.512:1 |
| Max.tekanan kerja |
|
| Katup |
API # 8 |
| Diameter maksimum silinder |
9" |
| Tekanan maksimum silinder |
|
| Diameter pipa hisap |
305mm (((12") |
| Diameter pipa pembuangan |
5 1/8 " Flange ((10000psi) |
| Diameter Pinion |
254mm ((10") |
| Kunci |
63.5×44.45mm ((2-1/2"×1-3/4") |
| Dimensi ((mm) |
|
| Berat mesin utama |
38460kg |
| Tabel Hubungan antara Pelepasan dan Tekanan dari Pompa Lumpur RS-F2200 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
| Diameter silinder |
|
dalam |
9 |
8 5/8 |
8 1/4 |
7 7/8 |
7 1/2 |
7 |
6 3/4 |
6 1/2 |
6 |
5 1/2 |
| Tekanan pembuangan |
MPa |
19 |
20.8 |
22.8 |
25.1 |
27.9 |
31 |
34.5 |
34.5 |
34.5 |
34.5 |
| psi |
2760 |
3015 |
3310 |
3645 |
4040 |
4505 |
5000 |
5000 |
5000 |
5000 |
| Stroke |
Daya masukan |
|
Kapasitas pembuangan ((L/s) |
| Min-1 |
KW |
Daya kuda |
| 105 |
1640 |
2200 |
77.65 |
71.05 |
64.73 |
58.72 |
52.99 |
47.56 |
42.42 |
37.58 |
33.03 |
28.77 |
| 90 |
1406 |
1886 |
66.56 |
60.9 |
55.49 |
50.33 |
45.42 |
40.77 |
36.36 |
32.21 |
28.31 |
24.66 |
| 80 |
1250 |
1676 |
59.16 |
54.13 |
49.32 |
44.74 |
40.37 |
36.24 |
32.32 |
28.63 |
25.16 |
21.92 |
| 70 |
1094 |
1467 |
51.76 |
48.36 |
43.16 |
39.14 |
35.33 |
31.71 |
28.28 |
25.05 |
22.02 |
19.18 |
| 60 |
937 |
1257 |
44.37 |
40.6 |
36.99 |
33.55 |
30.28 |
27.18 |
24.24 |
21.47 |
18.87 |
16.44 |
| 50 |
781 |
1048 |
36.97 |
33.83 |
30.83 |
27.96 |
25.23 |
22.65 |
20.2 |
17.89 |
15.73 |
13.7 |
| 1 |
|
|
0.7395 |
0.6766 |
0.6165 |
0.5592 |
0.5047 |
0.453 |
0.404 |
0.3579 |
0.3146 |
0.274 |
| (Efisiensi mekanik 90%, koefisien keisiupan α=100%, dan efisiensi volumetrik 100%) |
|
|
|
|
Merek Pasokan
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
Weatherford: MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250, C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600,FC-2200,FD-1000,FD-1600
GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
