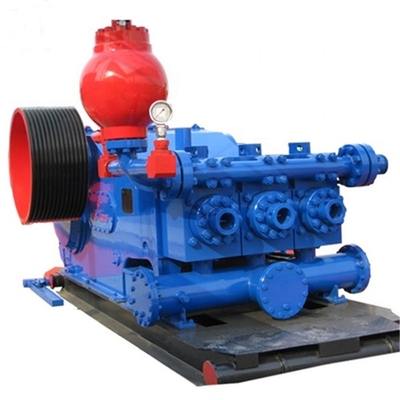

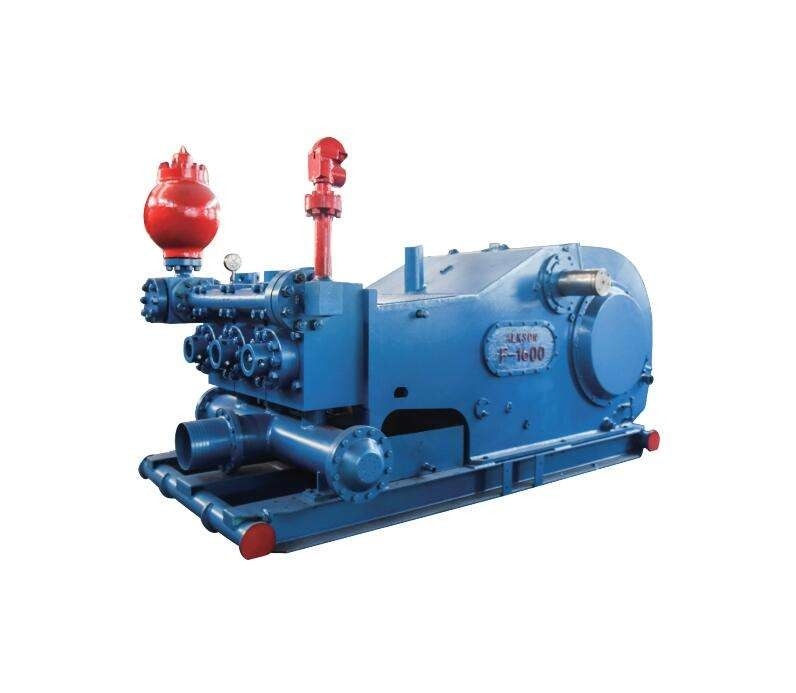

Pompa Lumpur Pengeboran Untuk Pompa Lumpur RS F-1600 Horsepower 1600
Parameter Spesifik
| Model Pompa | RS-F1600 |
| Nilai daya input | 1180kw (1600HP) |
| Stroke | 120 menit-1(120SPM) |
| Panjang Stroke | 304.8mm (12") |
| Perbandingan gigi | 4.206: 1 |
| Tekanan kerja maksimum | 34.5MPa |
| Katup | API#7 |
| Diameter silinder maks | 7 1/4" |
| Tekanan silinder maks | 23.3MPa |
| Diameter pipa hisap | 305mm (12") |
| Diameter pipa pembuangan | 5 1/8 "Flensa (5000psi) |
| diameter pinion | 215.9mm (8.5") |
| Kunci | 50.8×50.8mm(2"×2") |
| Dimensi (mm) | 4684×2413×2063 |
| Berat mesin utama: | 24751kg |
| Tabel Hubungan antara Debit dan Tekanan pompa lumpur RS-F1600 |
| | | | | | | | | | | |
| Diameter silinder | | di dalam | 7 1/4 | 7 | 6 3/4 | 6 1/2 | 6 1/4 | 6 | 5 1/2 | 5 |
| Tekanan debit | Mpa | 21.7 | 23.3 | 25.1 | 27.1 | 29.2 | 31.7 | 34.5 | 34.5 |
| psi | 3146 | 3345 | 3750 | 3930 | 4235 | 4820 | 5000 | 5000 |
| Stroke | Daya masukan | | Kapasitas debit (L / s) |
| menit-1 | KW | Daya kuda |
| 120 | 1180 | 1600 | 48.71 | 45.41 | 42.22 | 39.15 | 36.2 | 33.36 | 28.03 | 23.17 |
| 110 | 1078 | 1462 | 44,65 | 41.63 | 38.7 | 35.89 | 33.18 | 30.58 | 25.69 | 21.24 |
| 100 | 980 | 1329 | 40.59 | 37.84 | 35.18 | 32.63 | 30.17 | 27.8 | 23.36 | 19.31 |
| 90 | 882 | 1196 | 36.53 | 34.06 | 31.67 | 29.36 | 27.15 | 25.02 | 21.02 | 13.38 |
| 50 | 490 | 664 | 20.29 | 18.92 | 17.59 | 16.31 | 15.08 | 13.9 | 11.68 | 9.65 |
| 1 | 98 | 133 | 0,406 | 0.3784 | 0.3518 | 0,3263 | 0,3017 | 0.278 | 0,2336 | 0.1931 |
| (Efisiensi mekanis 90%, koefisien kepenuhan =100%, dan efisiensi volumetrik 100%) | |

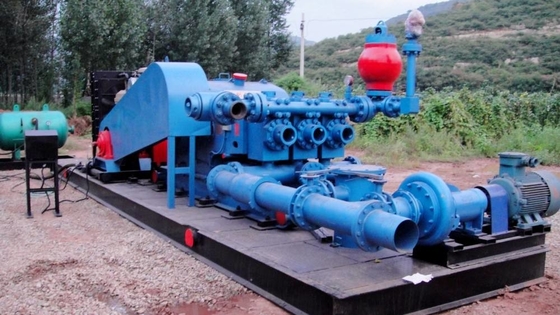

Solusi Set Pompa Lumpur
| Tidak. | Isi | Satuan | jumlah |
| 1 | Pompa lumpur pengeboran RS-F800, pompa semprot listrik 2.2Kw; perangkat, peredam denyut debit KB-45; perakitan (12gal, 5000psi), 15" debit 5-arah (filter; di dalam), katup pengaman pin geser JA-3 (35MPa ), Pengukur tekanan anti-getaran (0-6000psi), Liner silinder 5 ", piston. | MENGATUR | 2 |
| 2 | Mesin diesel CAT C27 875HP@1800-210RPM (termasuk tangki air, kipas angin, knalpot, pendingin oli) | MENGATUR | 2 |
| 3 | Transmisi Hidrolik ALLISON S6620 | MENGATUR | 2 |
| 4 | Pangkalan Umum mesin Diesel dan Transmisi | MENGATUR | 2 |
| 5 | Coupler DOX300F-400 dan Coupler Shield | MENGATUR | 2 |
| 6 | Kotak transmisi rantai gantung pompa | MENGATUR | 2 |
| 7 | Sistem pelumasan listrik kotak rantai | MENGATUR | 2 |
| 8 | Pompa infus daya (45KW, 380V, 50HZ) dan manifold | MENGATUR | 2 |
| 9 | Basis besar | MENGATUR | 2 |
| 10 | Sistem pengaturan | MENGATUR | 2 |
| 11 | Alat lampiran | MENGATUR | 2 |
| 12 | suku cadang lampiran | MENGATUR | 2 |
| 13 | Biaya perakitan dan debugging | MENGATUR | 2 |
| 14 | Biaya pengepakan (pengemasan telanjang) dan Pengangkutan (pelabuhan Shanghai) | MENGATUR | 2 |
Merek Pasokan
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA: HHF-500, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800
ITECO:T-500,T-800,T-1000,T-1600
SUMUR Minyak: A-350-PT, A-650-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
CUACA:MP-5, MP-8, MP-10, MP-13, MP-16
NASIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250, C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
