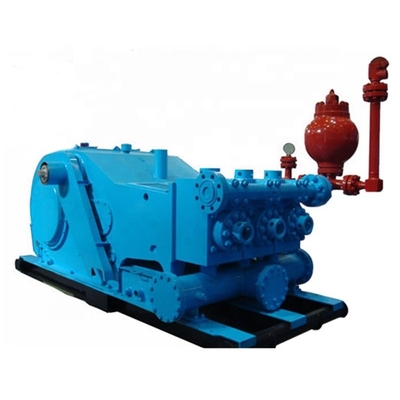

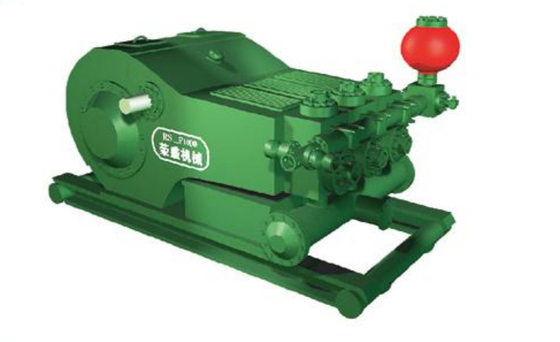

Pompa Lumpur Pengeboran Untuk Pompa Lumpur RS F-800 Horsepower 800 API 7K Standard
Parameter Teknis
| Model Pompa | RS-F800 |
| Nilai daya input | 956kw (1300HP) |
| Pukulan | 150 menit-1 (150SPM) |
| Panjang Stroke | 229mm (9") |
| Perbandingan gigi | 4.185: 1 |
| Tekanan kerja maksimum | 34.5MPa |
| Katup | API#6 |
| Diameter silinder maks | 6 1/2" |
| Tekanan silinder maks | 14.4MPa |
| Diameter pipa hisap | 254mm (10") |
| Diameter pipa pembuangan | 5 1/8 "Flensa (5000psi) |
| Diameter pinion | 177.8mm(7") |
| Kunci | 44.45×44.45mm(1 3/4"×1 3/4") |
| Dimensi (mm) | 3963×2005×1694 |
| Berat mesin utama: | 14000kg |
| Tabel Hubungan antara Debit dan Tekanan pompa lumpur RS-F800 | | | |
| | | | | | | | | | |
| Diameter silinder | | di | 6 1/2 | 6 1/4 | 6 | 5 1/2 | 5 | 4 1/2 | 4 |
| Tekanan debit | Mpa | 14.4 | 15.6 | 16.9 | 20.1 | 24.3 | 30 | 34.3 |
| psi | 2000 | 2260 | 2570 | 2950 | 3420 | 4015 | 4780 |
| Pukulan | Daya masukan | | Kapasitas debit (L / s) |
| menit-1 | KW | Daya kuda |
| 150 | 588 | 800 | 36.76 | 34 | 31.32 | 26.32 | 21.75 | 17.62 | 13.92 |
| 140 | 548.8 | 746,7 | 34.3 | 31.73 | 29.23 | 24.57 | 20.3 | 16.45 | 12,99 |
| 130 | 509.6 | 693.3 | 31.85 | 29.47 | 27.14 | 22.81 | 18.85 | 15.27 | 12.06 |
| 120 | 470.4 | 640 | 29.4 | 27.2 | 25.06 | 21.06 | 17.4 | 14.1 | 11.14 |
| 110 | 431.2 | 586.7 | 26.95 | 24.93 | 22.97 | 19.3 | 15,95 | 12.92 | 10.21 |
| 1 | 3.92 | 5.33 | 0.245 | 0.227 | 0.209 | 0,175 | 0,145 | 0.117 | 0,093 |
| (Efisiensi mekanis 90%, koefisien kepenuhan =100%, dan efisiensi volumetrik 100%) | |
Solusi Set Pompa Lumpur RF F-800
| Tidak. | Isi | Satuan | jumlah |
| 1 | Pompa lumpur pengeboran RS-F800, pompa semprot listrik 2.2Kw; perangkat, peredam denyut debit KB-45; perakitan (12gal, 5000psi), 15" debit 5-arah (filter; di dalam), katup pengaman pin geser JA-3 (35MPa ), Pengukur tekanan anti-getaran (0-6000psi), Liner silinder 5 ", piston. | MENGATUR | 2 |
| 2 | Mesin diesel CAT C27 875HP@1800-210RPM (termasuk tangki air, kipas, muffler, oil cooler) | MENGATUR | 2 |
| 3 | Transmisi Hidrolik ALLISON S6620 | MENGATUR | 2 |
| 4 | Pangkalan Umum mesin Diesel dan Transmisi | MENGATUR | 2 |
| 5 | Coupler DOX300F-400 dan Coupler Shield | MENGATUR | 2 |
| 6 | Kotak transmisi rantai gantung pompa | MENGATUR | 2 |
| 7 | Sistem pelumasan listrik kotak rantai | MENGATUR | 2 |
| 8 | Pompa infus daya (45KW, 380V, 50HZ) dan manifold | MENGATUR | 2 |
| 9 | Basis besar | MENGATUR | 2 |
| 10 | Sistem pengaturan | MENGATUR | 2 |
| 11 | Alat lampiran | MENGATUR | 2 |
| 12 | suku cadang lampiran | MENGATUR | 2 |
| 13 | Biaya perakitan dan debugging | MENGATUR | 2 |
| 14 | Biaya pengepakan (pengemasan telanjang) dan Pengangkutan (pelabuhan Shanghai) | MENGATUR | 2 |
Merek Pasokan
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA: HHF-500, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800
ITECO:T-500,T-800,T-1000,T-1600
SUMUR Minyak: A-350-PT, A-650-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
CUACA:MP-5, MP-8, MP-10, MP-13, MP-16
NASIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250, C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
